MyBeam

INTRODUCING MYBEAM®

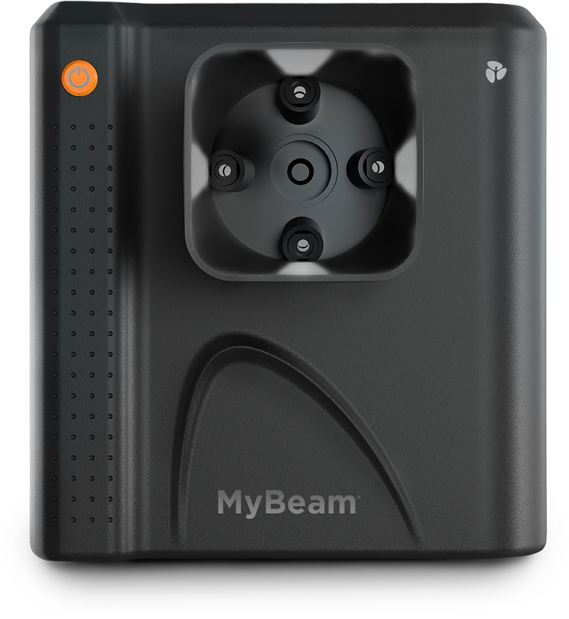

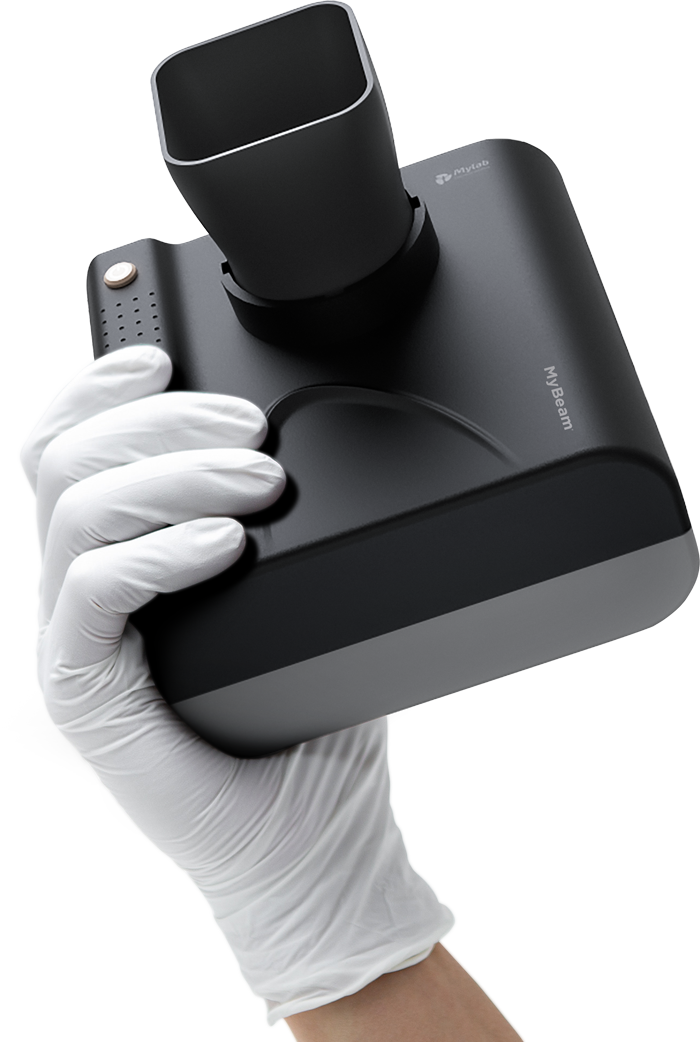

MyBeam® is the best handheld X-Ray system

MyBeam® is a Modern Tech, That well suits the modern World and it’s needs, By increasing working efficiency with it’s Compact Design, Minimized Radiation, High quality images, Advanced AI, and Reliability.

MyBeam® Features

Portable

Easy to carry, as it is
lightweight-1.8kg only.

Minimized Radiation

It only uses 2mA current..

AI Solution

Software assistance in
diagnosis of diseases.

Wireless

Easy to connect.

High Quality Image

MyBeam® X-Ray is the best handheld X-Ray system designed to provide utmost user convenience and safety while offering high quality images.

Striving every day to improve patient care

Software Assistance

Optional Al software assists diagnosis of diseases using simple X-Ray images and clinical information. This system is based on hybrid artificial neutral network technology or lesion detection and disease classification. It also provides Al analyzed probability of having a given disease. It assists physicians to diagnose diseases based on the image.

Calculate Bone Age

The software can help calculate the bone age and detects bone fracture. It has a capability to predict precocious puberty, the growth rate and adult height by analyzing the bone age in children. The bone age Assessment Solution supports precocious puberty or growth disorder diagnosis by measuring the bone age, margin of error being 8 months.

Mine 2IN X-Ray System

Mine 2IN X-Ray is a medical handheld X-Ray system manufactured in India & offers utmost user-convenience and safety while offering high-quality images.

X-Ray Generator Mine 2IN
Detector DXD 17x17
Mine 2IN Wireless Remote Control
X-Ray Generator Stand
Laptop

SPECIFICATION

Mine 2IN X-Ray Generator

Input Power

X-ray Unit : DC 5-12V 2.1A
Battery Charger : AC 100-240V, 50Hz,1A

Output Power

140W Maximum

Power Supply

DC11.1V (Battery)

Adjustable Function

Only Exposure Time

Selectable exposure time

0.01sec.~ 1.3sec.

Tube KV/MA

70kV/2mA

Focal Spot Size

0.4mm

Weight

1.8kg

Digital Detector DXD

External Dimension And Weight

17 x 17, 3.2 kg / 14 x 17, 2.95 kg

MTF DQE

MTF @ 0.5lp/mm : (Typ.) 89%
DQE @ 0.1lp/mm : (Typ.) 72%

A/D Conversion / Data Output

16bit / 16bit

Cycle Time / Full Image

8 sec. / 3 sec.

Image Area

X-ray Sensitive Pixel :
3072 x 3072 pixels / 2500 x 3052 pixels

X-ray Sensitive Pixel :
430.08 x 430.08 mm / 350 x 427.28 mm

TFT Type

A-si

Scintillator

Csl

Pixel Size

140 m
